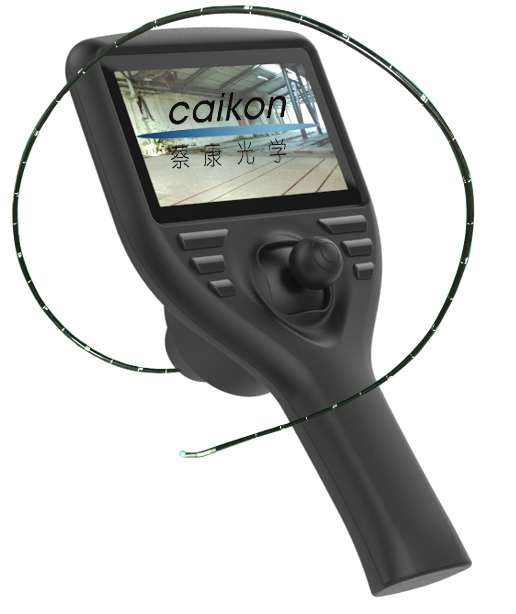

EVCK-2.8 电子内窥镜
● 外径仅φ2.8mm/φ1.8mm
● 像素高达16万
● 直/侧视更换头:图像满屏,照明满屏,双螺纹连接
● 2弯角,上下≥120°
● 超轻巧,整机总重不超过0.7 Kg
● 单手全操控:弯角,拍照,录像,调光等
● 大功率LED+光纤传导照明,大大提高了可观察距离
● 5英寸高清数字液晶显示器,更清晰的高分辨率真彩色图像
● 18650锂电池供电,更换方便,工作时间≥1.5小时
主要技术指标(Main Specification)
Model |
EVCK series endoscope |
Probe |
Outer Diameter |
Ø1.8mm-Ø2.8mm |
Image Sensor |
CCD or CMOS |
Illumination |
LED,Adjustable |
Depth Of Field |
10mm -100mm |
View Direction of the lens |
Forward view |
Field Of The View |
More than 120° |
Focal Length |
Motorized focus |
Definition |
(Vertical) 470 lines |
Pixel |
160000 |
Lightness |
normal/dark |
White Balance |
auto/manual |
Tip angulation |
up/down>120° left/right>120° |
Waterproof |
N/A |
Hand-held Controller |
Screen Type |
Colorful 5¨ LCD |
Memory |
16G,32G |
Port |
USB |
Compression Format |
MPEG4,AVI |
Image Format |
JPEG |
Language |
Chinese,English |
General |
Wire |
1m-15m |
Power |
Rechargeable Li Battery |
Operating Temperature |
-10C°-50C° |
